In collaboration with PCI Instruments, Shridhan Automation provides a comprehensive Repair and Calibration Service for Pressure Transmitters with Diaphragm Seals. A repair can be a quick and cost-effective option. Most repairs can be completed and returned to the customer within 7 to 10 business days. This can save on the long delivery times and frustration associated with buying a new transmitter.
BEFORE
AFTER
Diaphragm Seal Refurbishment
Professional refurbishment service to restore diaphragm seals to optimal condition and extend service life. When shridhan receives the transmitter with diaphragm seal system, the transmitter functionality is assessed by one of our engineers. A quotation for the repair of the diaphragm seal portion ONLY will be sent.
Typical Applications
- Pressure, differential pressure, flow, and level measurement systems
- Chemical, oil & gas, and pharmaceutical plants
Technical Specifications
- Cleaning and repair of diaphragm assemblies
- Reassembly and testing under operational conditions
Case Study Gallery
Real-world examples of our work and problem-solving capabilities.
Refurbishment Results
Before

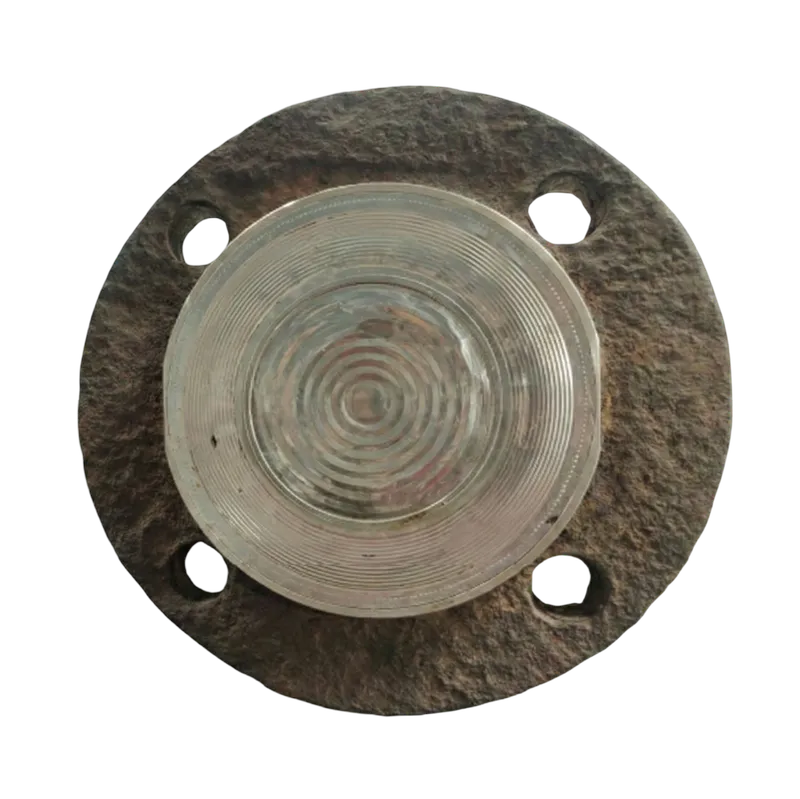

Before refurbishment: damaged seal showing wear and degradation.
After
After professional refurbishment: restored seal performance and appearance.
Common Seal Damage Examples
Learn to identify damage types for timely refurbishment

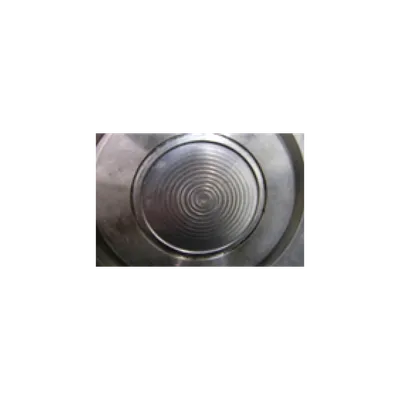

Bulging indicates internal pressure issues. This seal requires immediate replacement to prevent system failure.

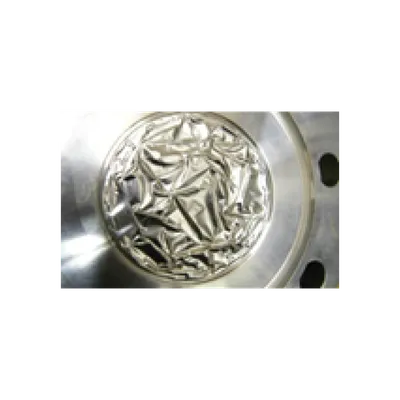

Complete seal failure due to overpressure. System must be shut down immediately for safety.
Physical damage from impact. Can compromise seal integrity over time and lead to leaks.

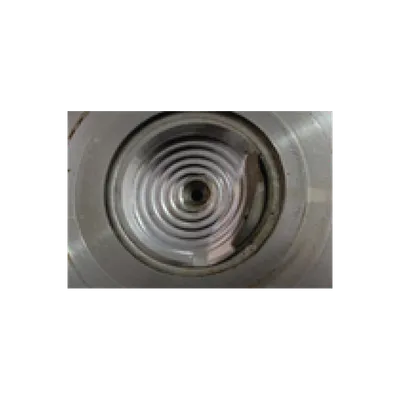

Rupture from material fatigue. Schedule refurbishment immediately to prevent complete system failure.
